Energy Storage
Kerun energy storage solutions enhance grid stability, optimize solar integration, and ensure reliable power for industrial and off-grid applications.

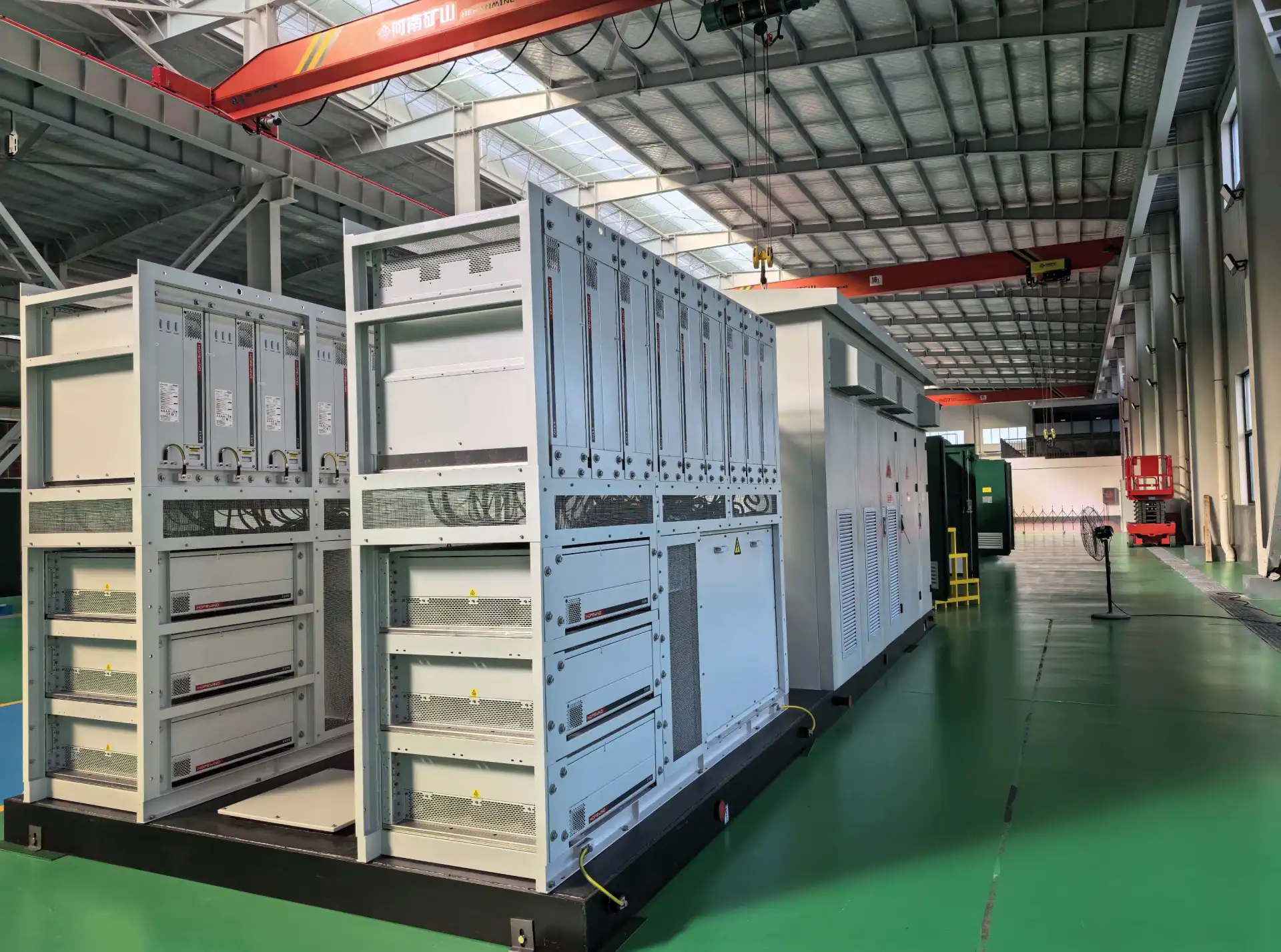

Kerun Containerized BESS All-in-One Overview
PCS, electrical protection, EMS controls, HVAC, and fire safety into a standardized container platform—enabling fast transportation, quick installation, and plug-and-play commissioning. Designed for PV integration, commercial & industrial peak shaving, grid services (frequency/voltage support), backup power, and microgrid/off-grid applications, the system supports flexible power/energy scaling through modular design.
With robust safety architecture and smart energy management, Kerun’s BESS improves renewable energy utilization, enhances grid stability, and helps customers reduce total energy costs. The system supports remote monitoring and multiple communication protocols for seamless integration with SCADA and utility control platforms, meeting diverse project requirements across global markets.
| Parameter Item | Specifications | Remarks |
|---|---|---|
| Product Name | Kerun Containerized BESS All-in-One | Integrated battery + PCS + EMS + HVAC + fire safety |
| Rated Power (AC) | 1000 kW | Expandable: 500 kW–2500 kW (optional) |
| Rated Energy (Usable) | 2000 kWh | Options: 1000/2000/4000 kWh |
| Charge/Discharge Rate | 0.5C | Example pairing: 2 MWh with 1 MW |
| Battery Chemistry | LFP (LiFePO₄) | High safety and long cycle life |
| DC Voltage Range | 1000–1500 Vdc | Typical 1500 V platform (configurable) |
| PCS Type | Bidirectional PCS | Grid-tied; off-grid/microgrid mode optional |
| AC Output Voltage | 400 Vac / 690 Vac (optional) | LV output; MV connection via step-up transformer |
| Grid Connection (Optional) | 10/11/20/33 kV via step-up transformer | MV interface depends on project grid |
| System Efficiency (AC–AC) | ≥ 88% | Typical value; depends on operating point |
| Power Factor | Adjustable -1 to +1 | Reactive power support / voltage regulation |
| Grid Support Functions | LVRT/HVRT (optional) | Configurable according to local grid code |
| Control System | BMS + EMS + PCS Controller | Local HMI + remote SCADA integration |
| Communication | Ethernet / RS485 / CAN | Modbus TCP/RTU; IEC 104/61850 optional |
| Cooling | Industrial HVAC (air-cooled) | Liquid cooling optional |
| Fire Safety | Aerosol / Novec 1230 / FM-200 (optional) | Smoke + temperature detection included |
| Ingress Protection | Container IP54 (sample) | Higher IP rating available on request |
| Operating Temperature | -20°C to +50°C | Derating may apply at extreme conditions |
| Altitude | ≤ 2000 m | Customization/derating for higher altitude |
| Container Type | 20ft / 40ft (sample: 40ft) | Depends on power/energy configuration |
| Dimensions (Sample) | 12192 × 2438 × 2896 mm | 40ft HC reference |
| Design Life | 15–20 years (sample) | Project-dependent |
| Cycle Life | ≥ 6000 cycles @ 80% DoD (sample) | Depends on cell selection and operation strategy |
| Typical Applications | PV+ESS / Peak Shaving / Grid Services / Microgrid | Backup power and renewable integration |
Mozambique Containerized Energy Storage Substation Project
Located in northern Mozambique, the project is situated in an area with an extremely unstable power grid, frequently experiencing power outages lasting for weeks due to tropical cyclones. The mining area urgently needs an independent and reliable power source.
- Environmental hell: The average annual temperature is 30°C or higher, the humidity remains above 85% all year round, and it belongs to the world’s high-incidence area of thunderstorms (thunderstorm days > 80 days/year).
- Isolated Operation: This is a 100% off-grid system. If the transformer fails, the entire mining area will be paralyzed, resulting in extremely high losses from production stoppages.
- Load impact: When crushers and ball mills in mines start up, they generate impact loads of up to 3 times the rated current, which is a great test of the transformer’s impact resistance.
Impact resistance and high overload resistance
- Technical improvements: To address the inrush current during ball mill startup, we increased the mechanical strength of the coil. We adopted self-adhesive transposed conductors (CTC) and increased the clamping force of the core clamps, improving its short-circuit withstand capability by 30%.
- Thermal management: Designed according to K-Factor 13 standards, the transformer can operate continuously for 120 minutes under 1.5 times overload without alarming, ensuring smooth start-up of mining equipment.
Kerun Solutions
Thunderstorm resistance and insulation enhancement
-
-
-
- Technical action: In response to the high thunderstorm density in Mozambique, we increased the high-voltage side lightning impulse withstand voltage (BIL).
- Moisture-proof process: The coil uses H-class insulation material and is treated with VPI (vacuum pressure impregnation). The surface is covered with a special anti-mildew and anti-salt spray coating, so that creepage or mold will not occur even at 95% humidity.
-
-
Intelligent temperature control and maintenance-free

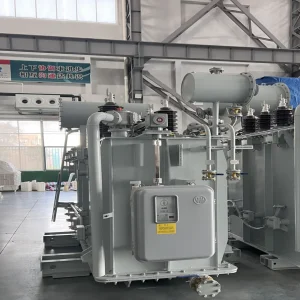

- Technical features: Utilizing ONAN (oil-immersed self-cooling) technology, the fan is eliminated (fans are prone to failure in dusty and humid environments). The oil tank employs a corrugated, fully sealed structure, filled with high-purity nitrogen for protection, preventing oxygen and moisture from entering and achieving true “maintenance-free” operation.

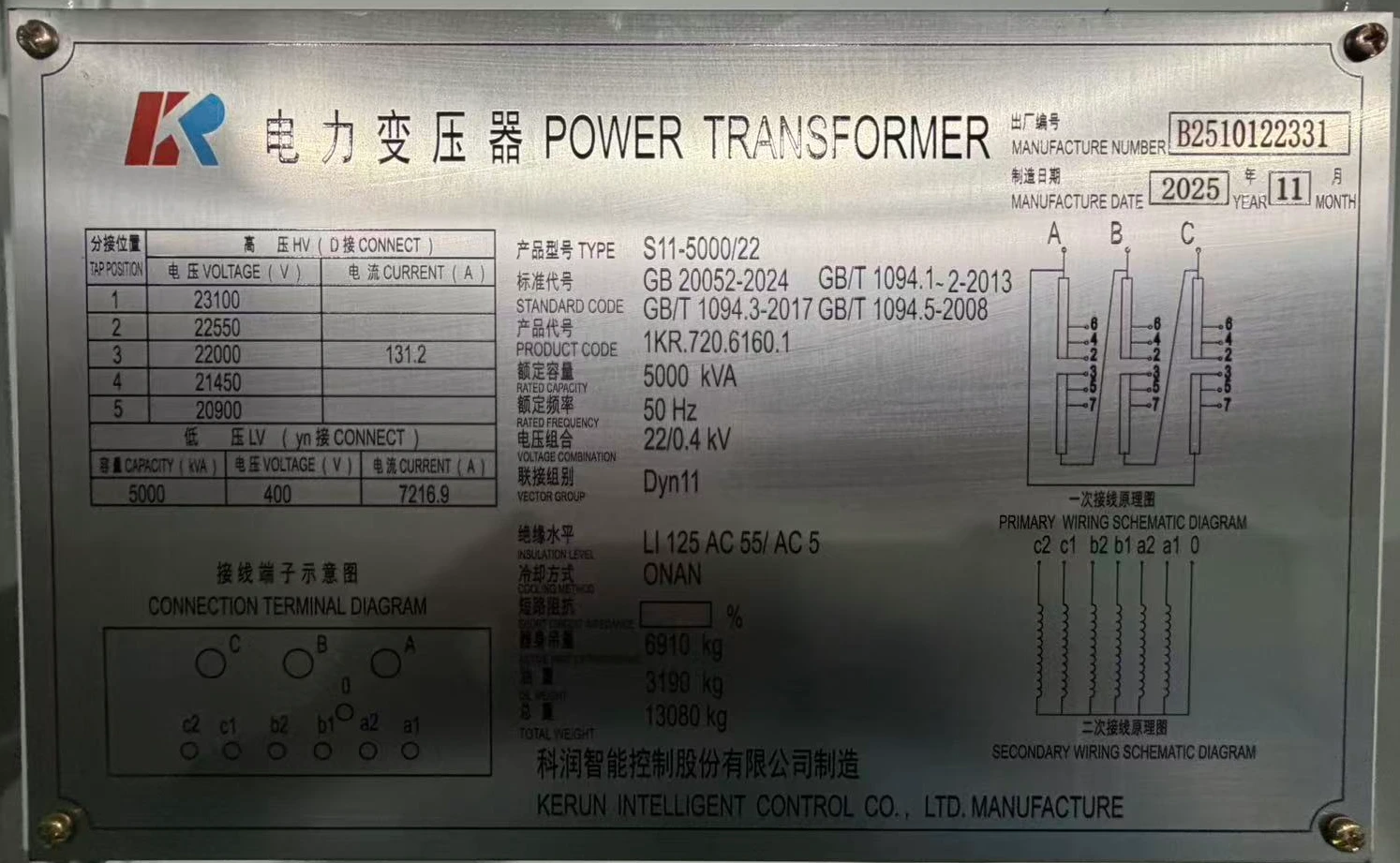

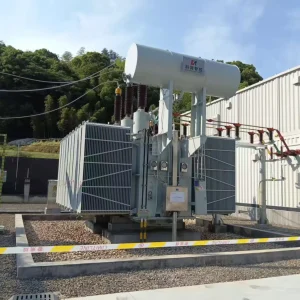

| Parameter Item | Specifications | Remarks |
|---|---|---|
| Product | Power Transformer (Oil-Immersed) | Nameplate: “POWER TRANSFORMER” |
| Manufacturer | KERUN INTELLIGENT CONTROL CO., LTD. | As shown on nameplate |
| Manufacture Number | B2510122331 | As shown on nameplate |
| Manufacture Date | 2025-11 | Year / Month on nameplate |
| Type / Model | S11-5000/22 | As shown on nameplate |
| Product Code | 1KR.720.6160.1 | As shown on nameplate |
| Standards | GB 20052-2024; GB/T 1094.1-2:2013; GB/T 1094.3:2017; GB/T 1094.5:2008 | Listed on nameplate |
| Rated Capacity | 5000 kVA | As shown on nameplate |
| Rated Frequency | 50 Hz | As shown on nameplate |
| Voltage Combination | 22 / 0.4 kV | As shown on nameplate |
| Vector Group | Dyn11 | HV: Delta / LV: Star with Neutral |
| Cooling Method | ONAN | Oil Natural Air Natural |
| HV Connection | D (Delta) | Shown as “HV (D CONNECT)” |
| LV Connection | yn (Star with Neutral) | Shown as “LV (yn CONNECT)” |
| Tap Positions | 5 Positions | From tap table |
| HV Tap Voltages | 23.10 / 22.55 / 22.00 / 21.45 / 20.90 kV | Positions 1–5 |
| Tap Range (Calculated) | +5.0% / +2.5% / 0% / −2.5% / −5.0% | Calculated around 22.0 kV (reference) |
| HV Rated Current | 131.2 A | At 22.0 kV (nameplate) |
| LV Voltage | 400 V | As shown on nameplate |
| LV Rated Current | 7216.9 A | At 0.4 kV (nameplate) |
| Insulation Level | LI 125 / AC 55 / AC 5 | As shown on nameplate |
| Short-Circuit Impedance | 6.5 % | Typical value (for reference if not stated clearly) |
| Oil Weight | 6910 kg | As shown on nameplate |
| Net Weight (Active Part) | 3190 kg | As shown on nameplate |
| Total Weight | 13080 kg | As shown on nameplate |
| HV Terminals | A / B / C | Per terminal diagram |
| LV Terminals | a1 a2 / b1 b2 / c1 c2 / 0 (Neutral) | Per terminal diagram |

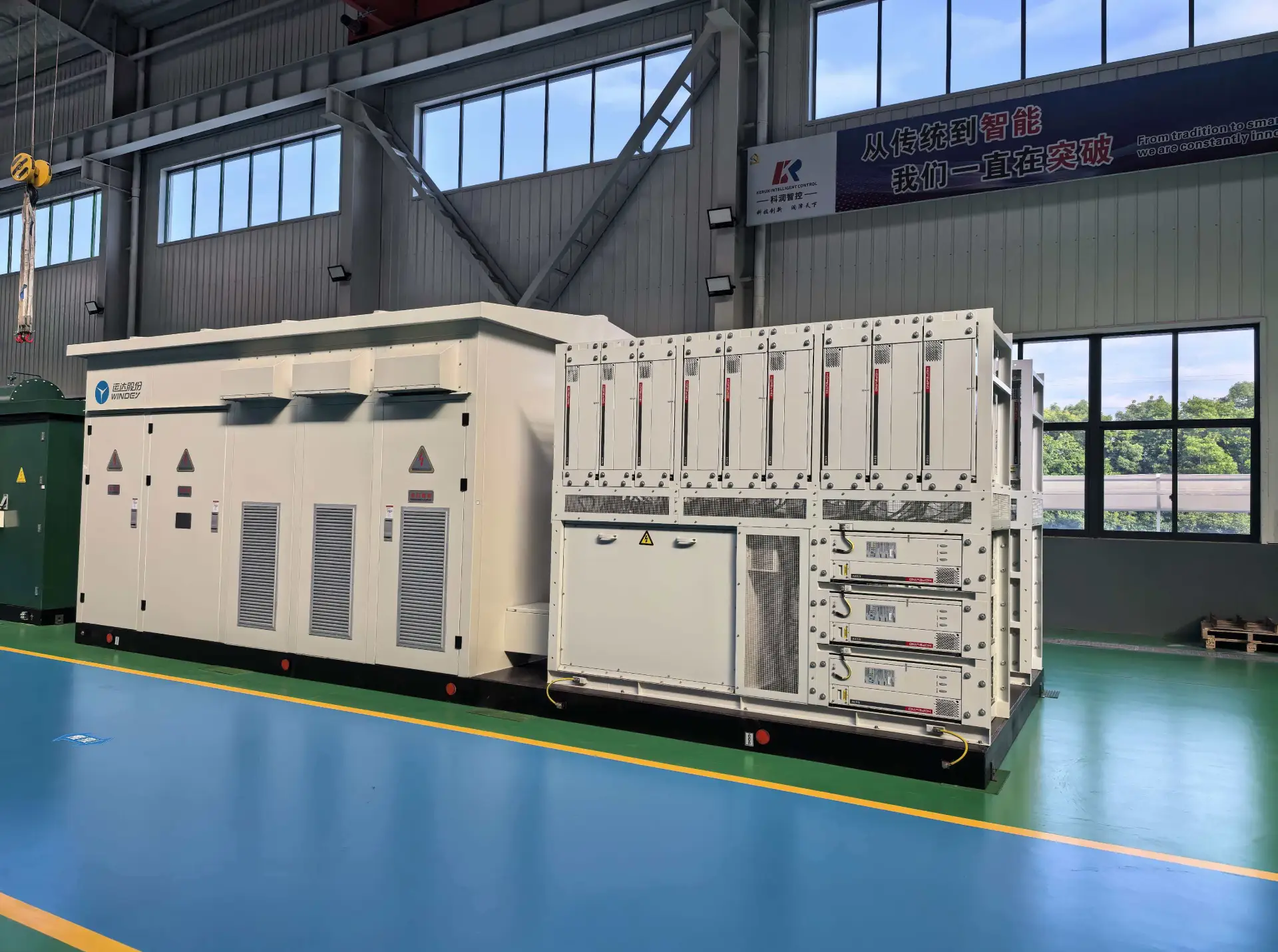

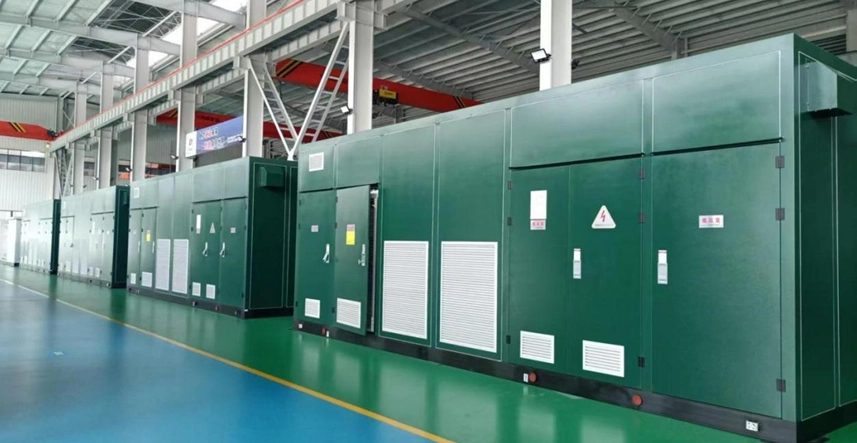

High-Capacity All-in-One BESS PCS & Step-Up Unit
Designed for renewable integration and fast deployment, our High-Capacity All-in-One Energy Storage Power Conversion and Step-Up Unit combines PCS power conversion, MV step-up transformer, protection & control, and auxiliary systems into one prefabricated enclosure.
This solution has been applied in Shanxi Gujiao Shengfeng 30MW Wind Power Project (China), supporting stable grid interaction, efficient installation, and reliable long-term operation.
Why This Product (Key Features)
-
All-in-one integration: PCS + step-up transformer + MV/LV distribution + protection & monitoring in one unit
-
Factory pre-commissioning: reduces on-site wiring and shortens installation & energization time
-
Grid-friendly performance: engineered for renewable + storage scenarios, supporting stable operation and protection coordination
-
Outdoor-ready structure: engineered enclosure with ventilation strategy and maintenance-friendly access
-
Project-oriented delivery: clear documentation pack, FAT records, and shipping reinforcement for safe logistics
Simple Technical Parameters (Project Reference)
-
Product Type: High-capacity BESS power conversion and step-up integrated unit
-
Model: YBW-7200/37-10.5-1.14
-
MV Side (rated): 37 kV class (Max system voltage up to 40.5 kV, as configured)
-
LV Side (rated): 10.5 kV class
-
Transformer: 40.5 kV dry-type transformer (as per project configuration)
-
Application: Wind/PV + BESS grid-connection, renewable-side energy storage, step-up interface
Notes: Detailed electrical ratings, protection scheme, and communication protocol can be configured based on the SLD and grid code.

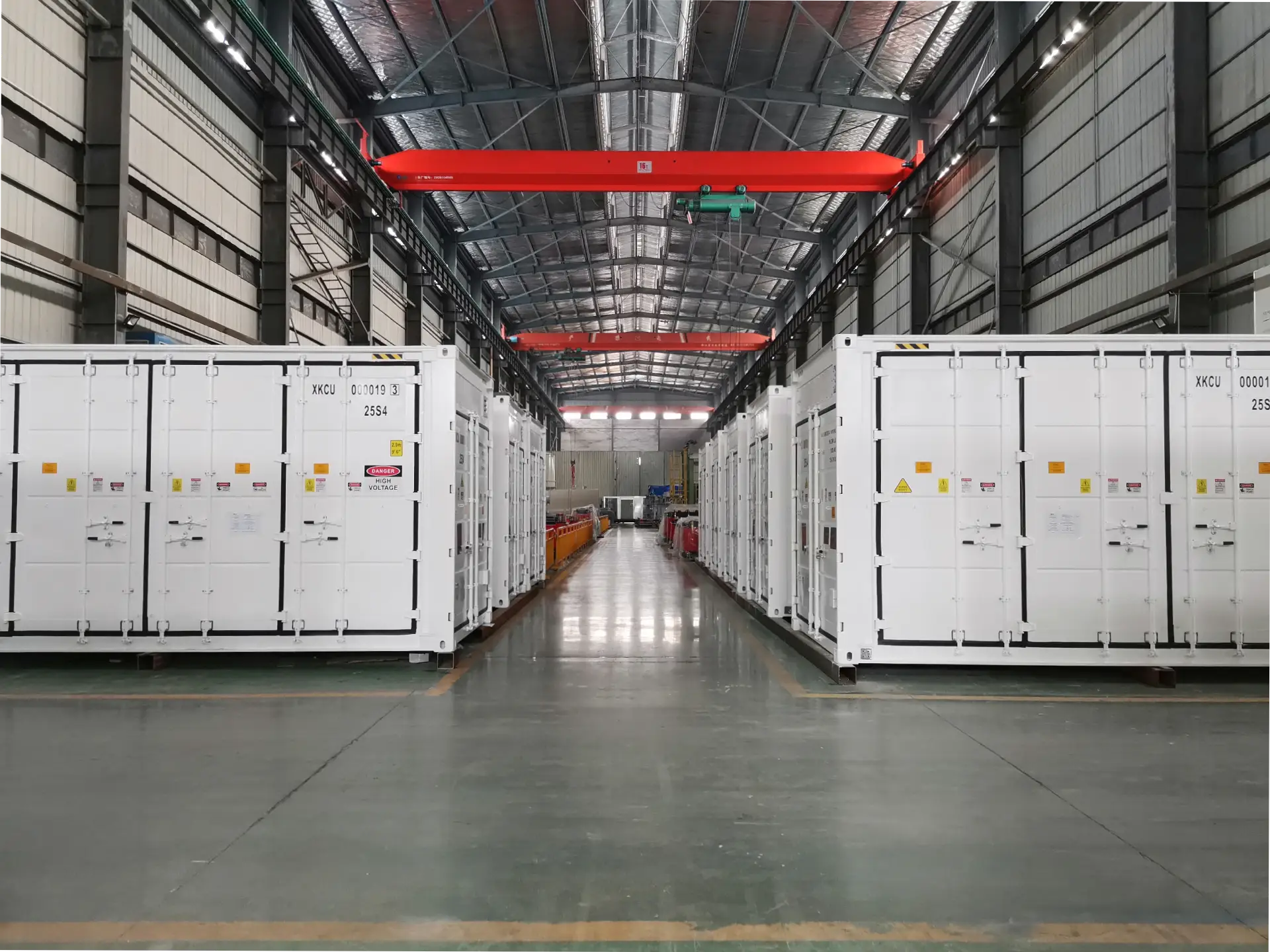

UK 200MW PV Project – Standard Energy Storage Containers
For large-scale renewable projects, consistency and compliance matter as much as capacity. Kerun’s standard energy storage containers were produced for a UK 200MW PV power station, with GE (USA) leaders and technical experts visiting our facility for factory inspection and process verification. This project reflects our capability to deliver storage equipment in a repeatable, audit-ready manner—meeting international expectations on manufacturing control, documentation, and shipment readiness.

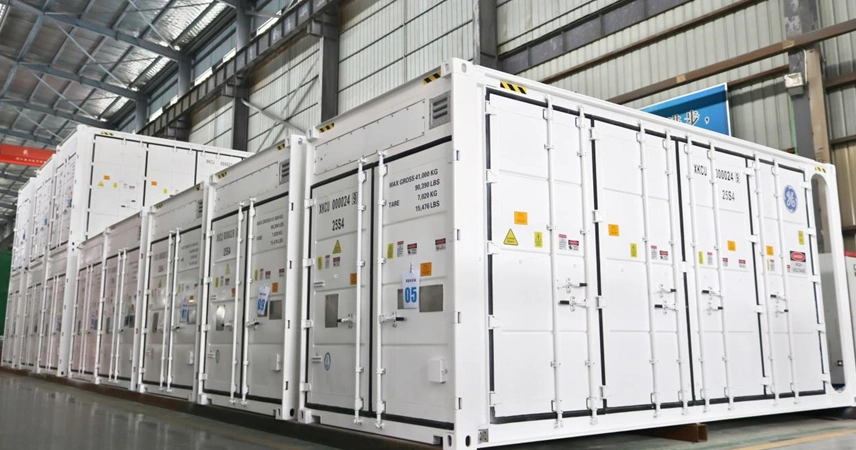

UK 200MW PV Project – Standard Energy Storage Containers
For large-scale renewable projects, consistency and compliance matter as much as capacity. Kerun’s standard energy storage containers were produced for a UK 200MW PV power station, with GE (USA) leaders and technical experts visiting our facility for factory inspection and process verification. This project reflects our capability to deliver storage equipment in a repeatable, audit-ready manner—meeting international expectations on manufacturing control, documentation, and shipment readiness.
Key Highlights
-
Customer inspection-ready manufacturing: structured QA checkpoints, traceable records, and clear acceptance criteria for third-party audits
-
Standardized container platform: stable mechanical structure, unified interface design, and scalable production for multi-container deliveries.
- Export delivery competence: packaging, marking, and logistics preparation aligned with long-distance shipment and site receiving efficiency
-
Safety-focused execution: clear hazard labeling, access control design, and engineering discipline throughout fabrication and final release
Quick Reference
-
Solution Type: Standard Energy Storage Container Platform
-
Application: Utility-scale PV + energy storage (Project reference: UK 200MW PV power station)
-
Quality & Acceptance: Factory inspection supported (e.g., GE technical review & verification)
-
Delivery Form: Containerized, modular units for fleet-scale deployment
Note: Electrical configuration (battery system, PCS, HVAC, fire system, EMS/SCADA interfaces) can be tailored based on project requirements and local compliance.
